A lance still misses the base
Standing a 240 on its lid and jetting it is how interiors stay filthy. A 60° spinner sitting inside the inverted bin is a different geometry.
WBW-001 · Johnson Wash Systems, LLC
Invert. Wash.40 GPM at 300 PSI.
SS304 stand, 60° spinner, Webtrol booster, 55-gallon drum. The drawing is the product. From $8,750.
40 GPM
spinner flow
300 PSI
wash pressure
SS304
0.125 in TIG stand
55 gal
supply drum
The job on your dock

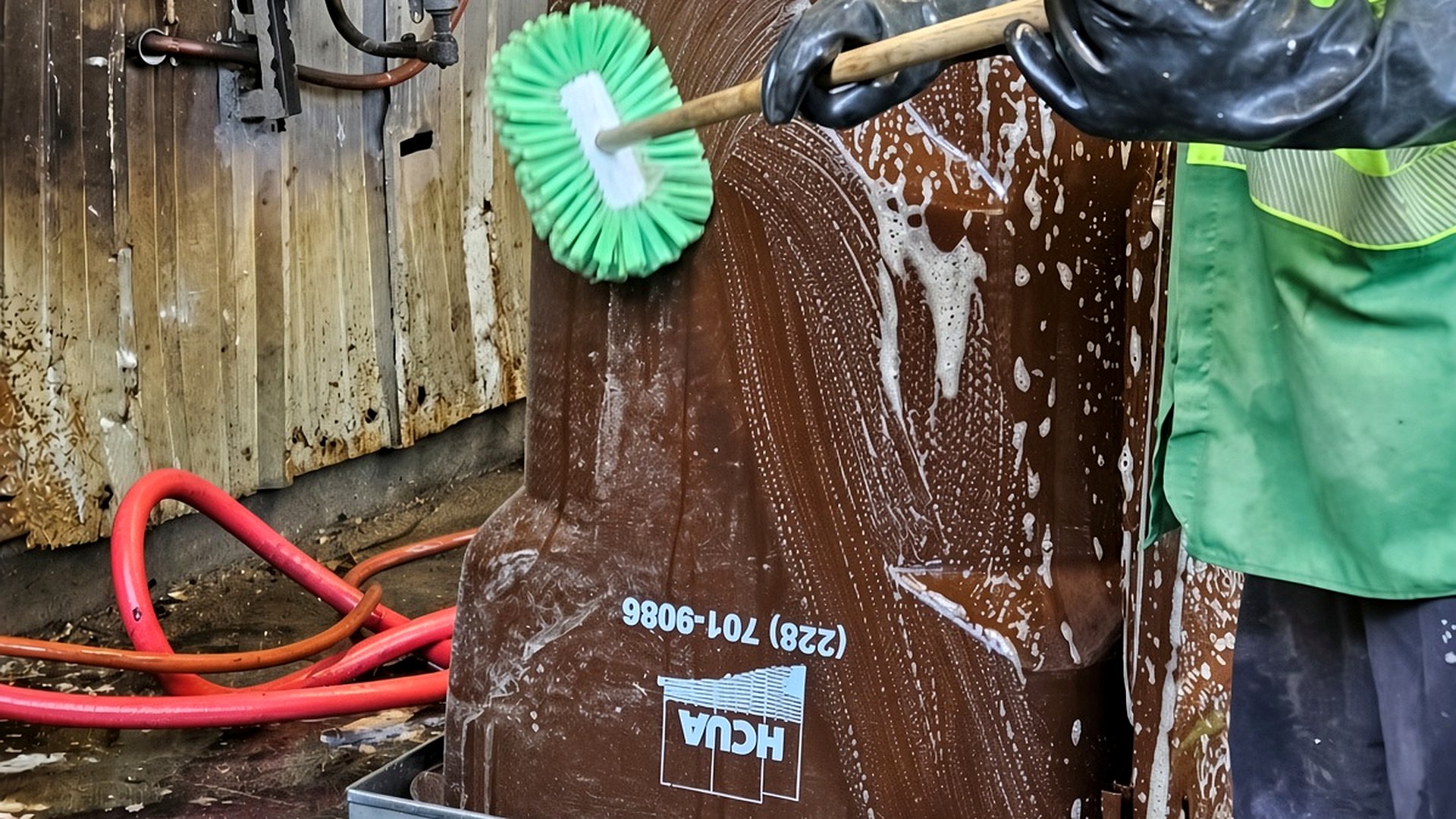

Interior film is why the bin still smells after you “washed” it.
Cabinet machines are a different PO
Hydraulic invert cabinets are plant projects. WBW-001 is a TIG stand, a pump, and a drum — signed from the drawing pack, not a six-figure skid.
Contractor washes miss the clock
If bins already come home empty, washing them at the dock is cheaper than booking a van that also serves three other boroughs.

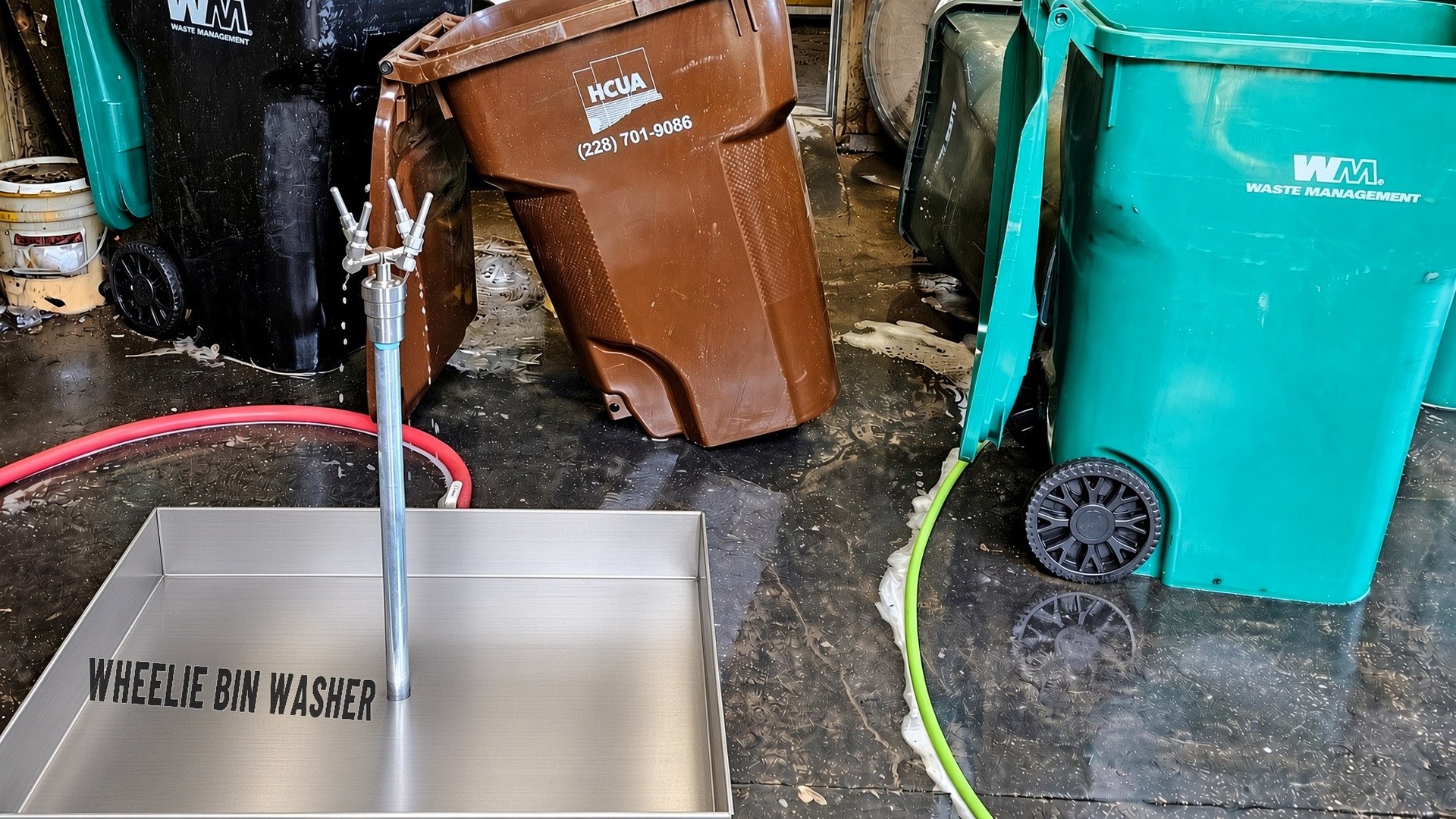

The station
WBW-001. A stand, a spinner, a pump, a drum.

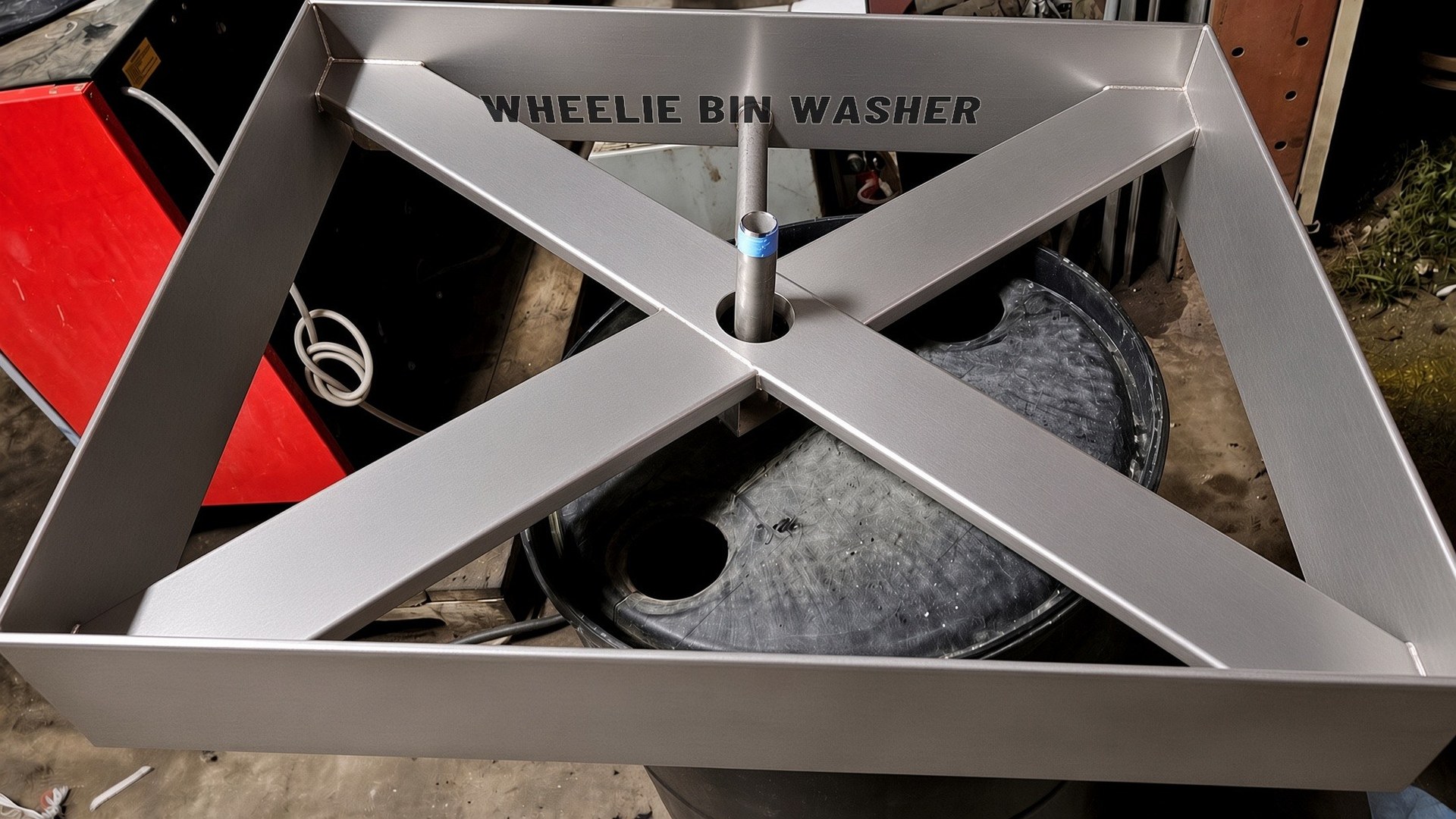

40.75 × 36 × 8 in TIG-welded 304 plate. 24 in riser. 60° nozzle. EZ Webtrol G15B20T. 55-gallon reservoir with Hudson float. WEG starter. That is the BOM on sheet 1 — not a render.
- 40 GPM · 300 PSI · 60° spinner
- 40.75 × 36 × 8 in SS304 stand
- 55 gal drum, open wash — you need a drain
- 208–240 VAC 60 Hz / 180–208 VAC 50 Hz
From the dock

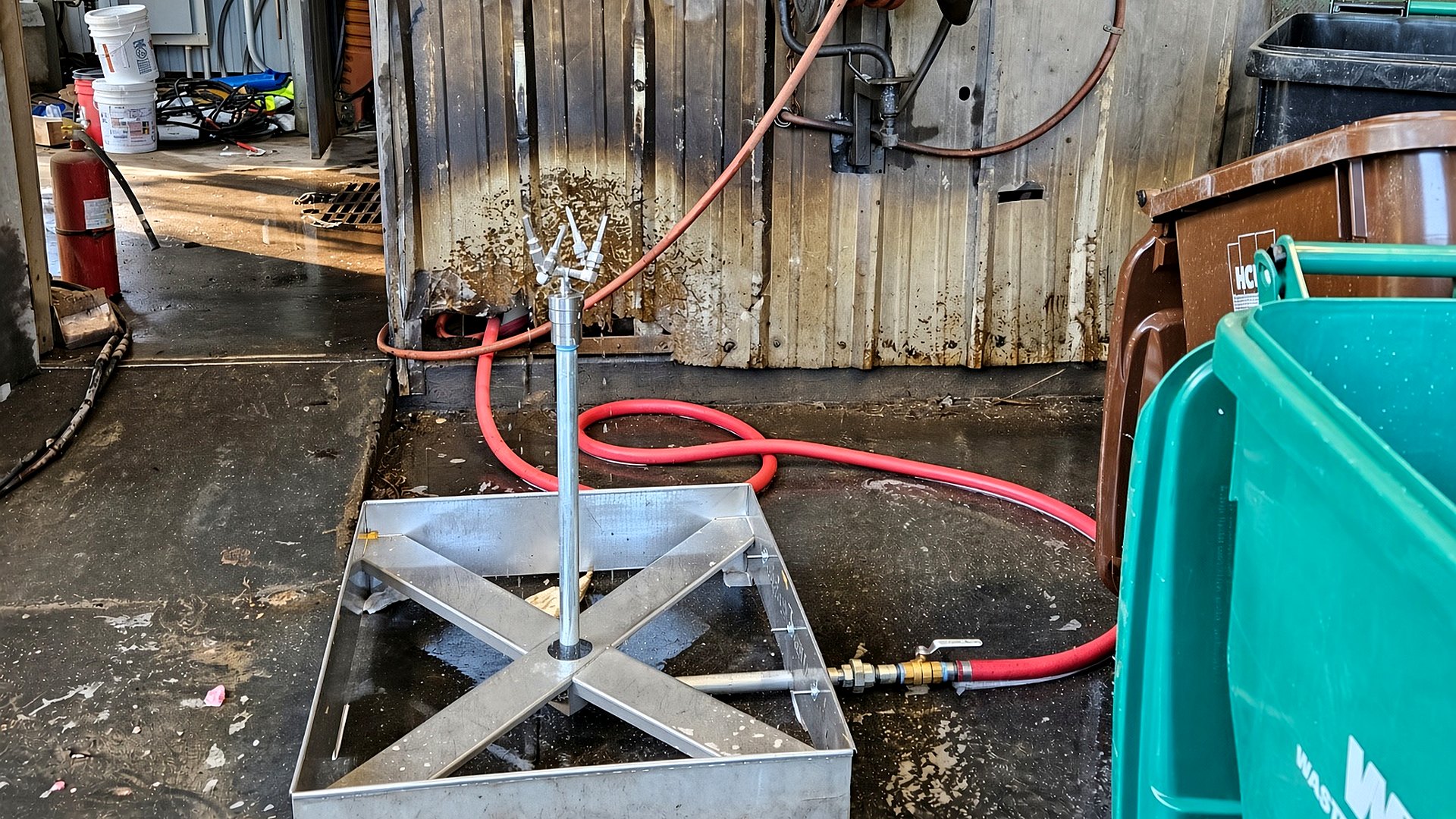

Prototype week. Real stand, real spinner, real 240s.
How it works
Four steps. No hydraulics. No pit.
01
Empty
This stand takes empty two-wheel bins. Do not invert a wet 70 kg 240.
02

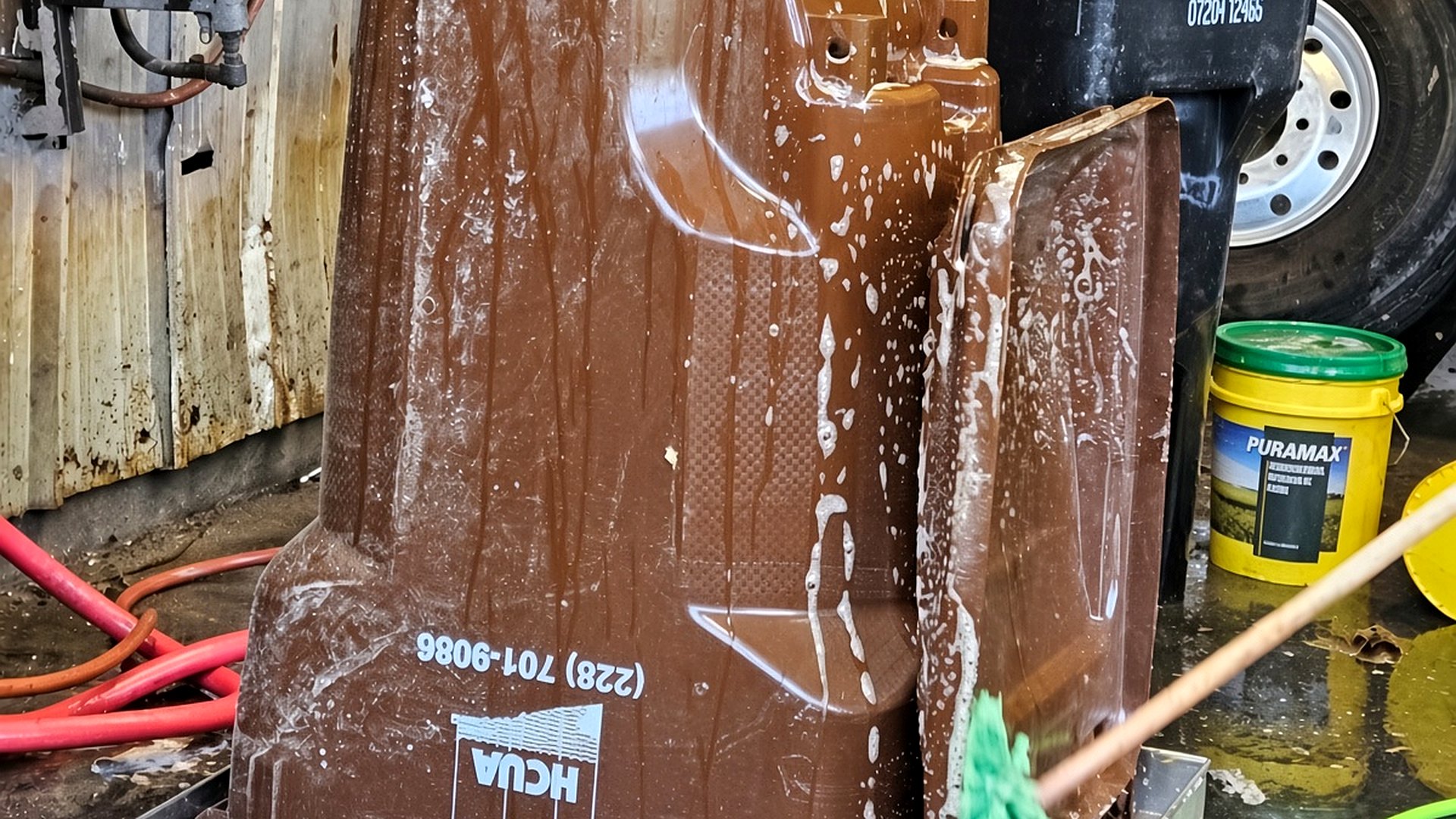

Invert
Seat the mouth over the 8-inch SS304 stand. The 24-inch riser sits inside.
03

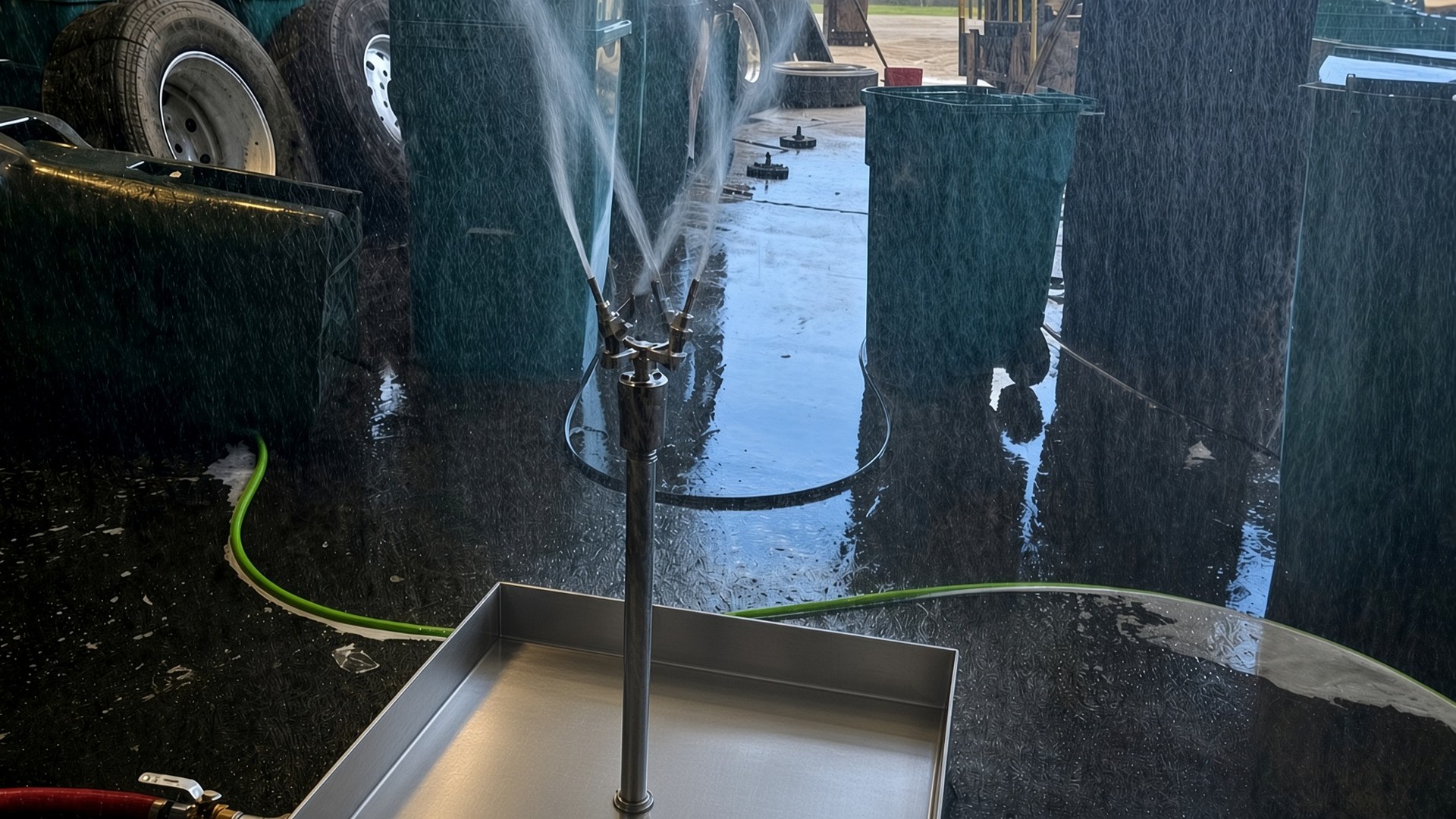

Wash
Start the Webtrol. 60° spinner, 40 GPM, 300 PSI, 20–40 seconds.
04
Drain
Water leaves the bin onto the slab. You need a drain. Then roll the bin away.

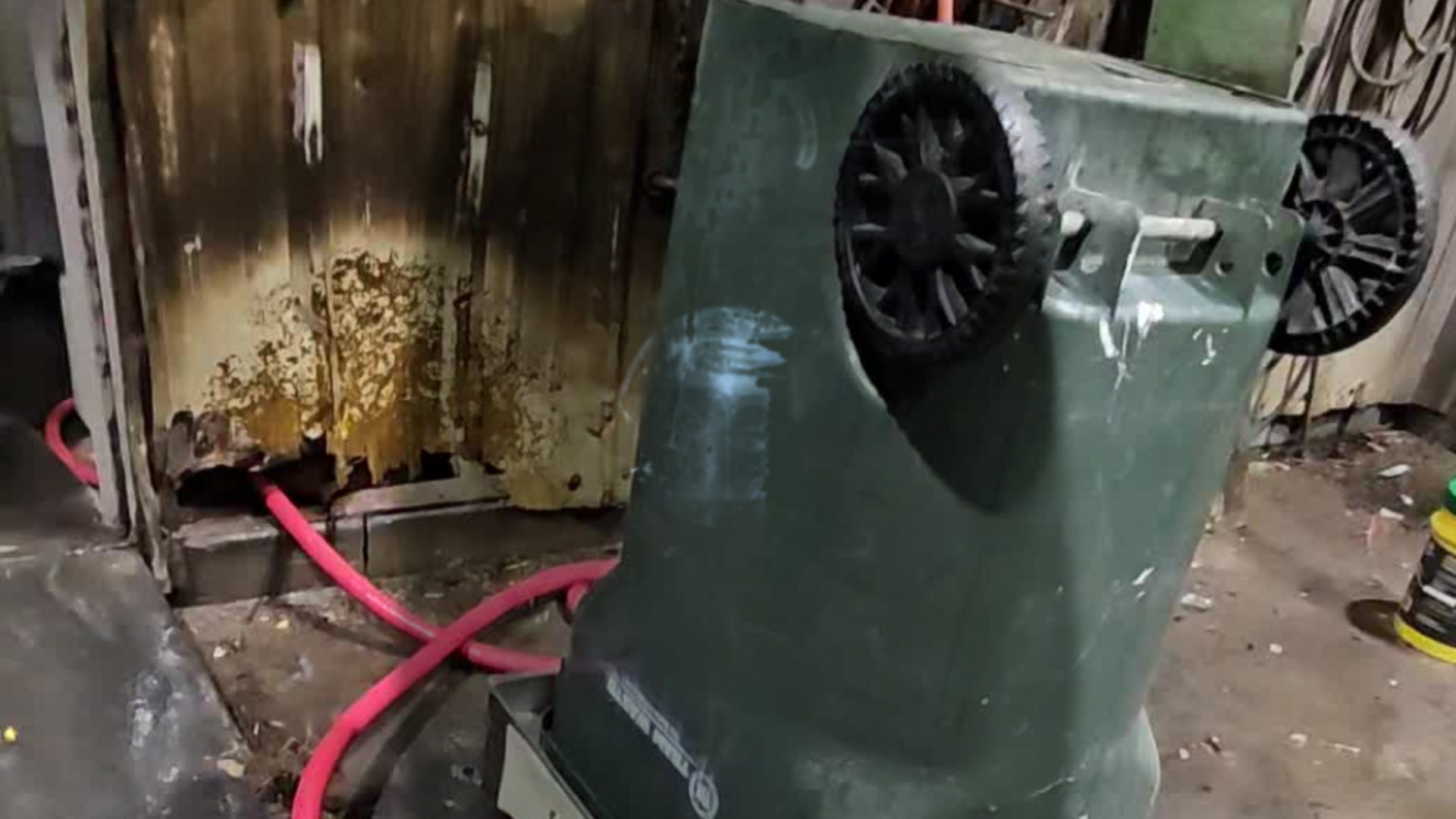

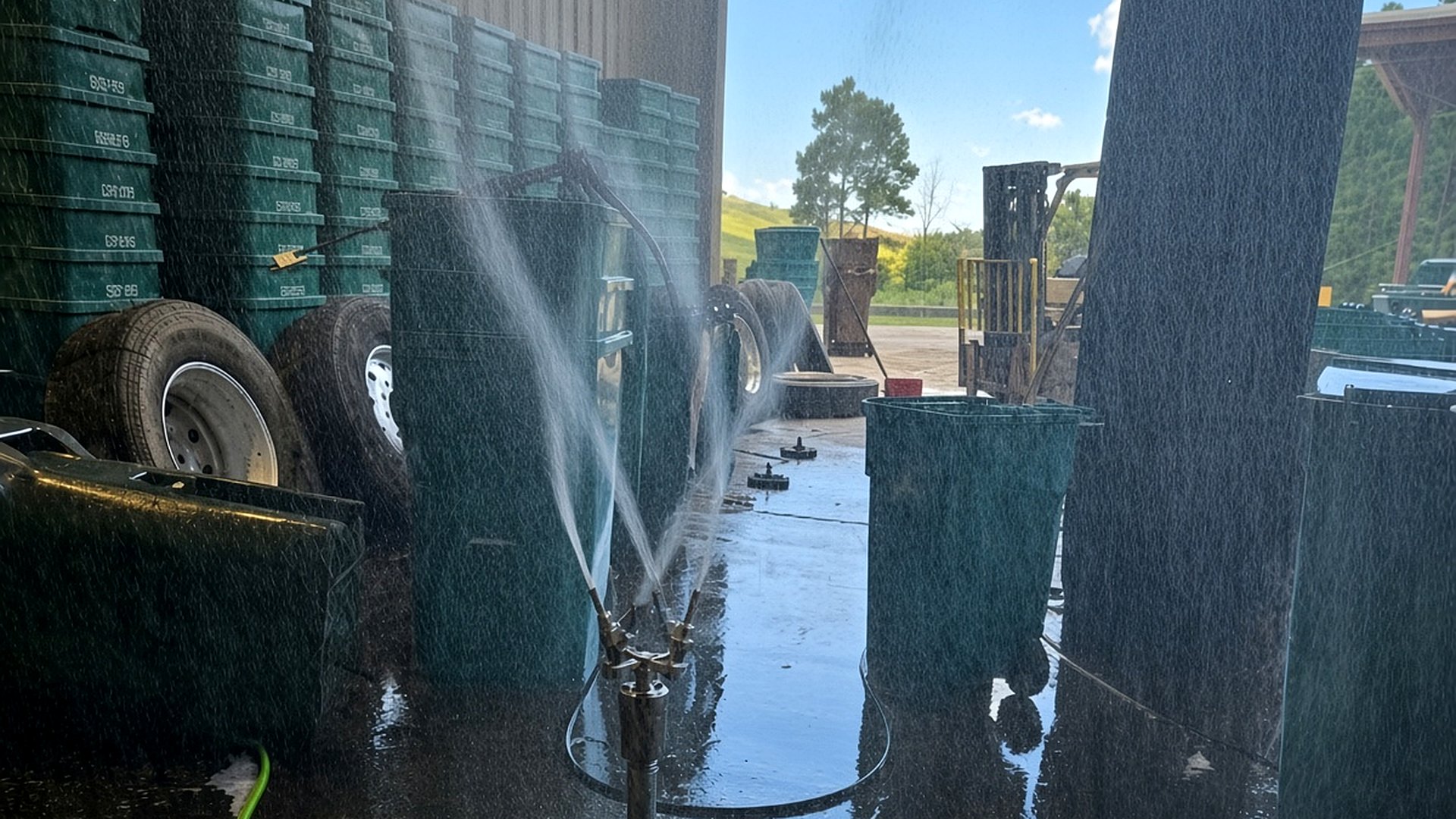

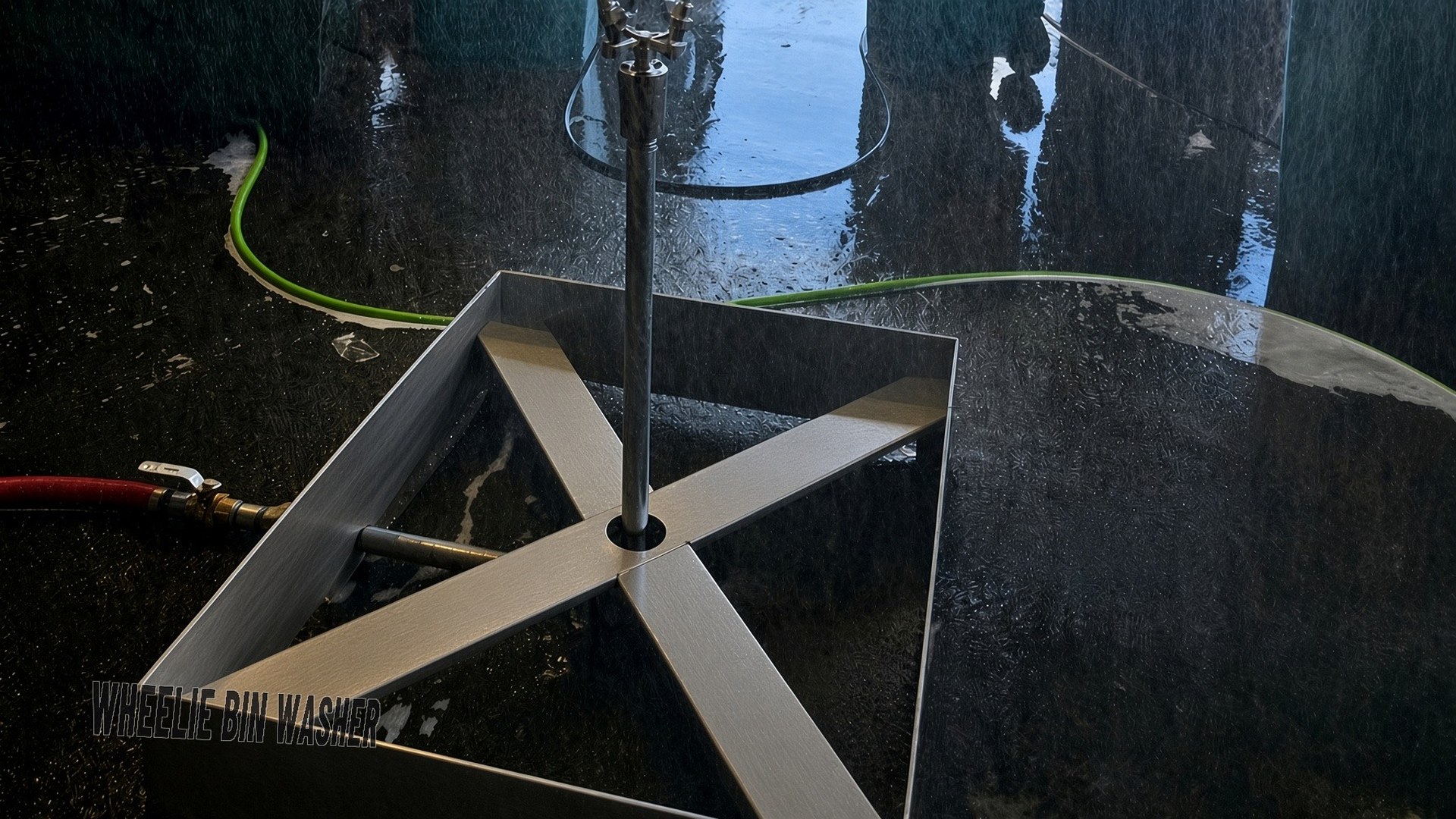

Invert cycle cutaway · live 60° spinner from the yard test inside the inverted 240. The bin is opaque HDPE — that is how the jets hit.
Payback
This is a hose replacement. Run the numbers like one.
Labor and contractor invoices — not water. A 30-second spinner shot uses about 20 gallons. If bins never come home empty, stop.
Who buys it

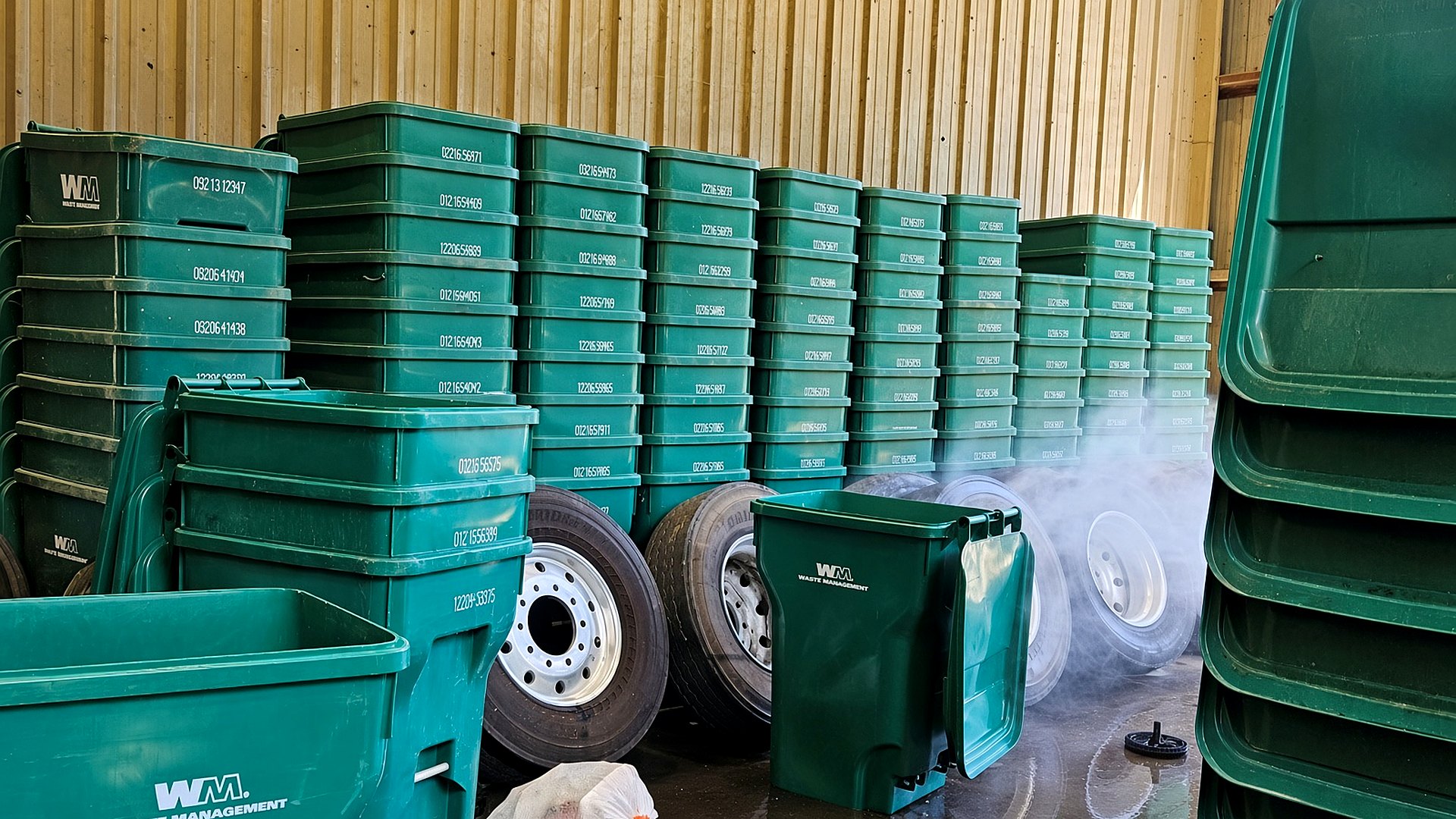

Docks that already get the bins back.
Waste contractors & transfer stations
Wash returning 240s at the gate without a hydraulic cabinet or a contractor van.

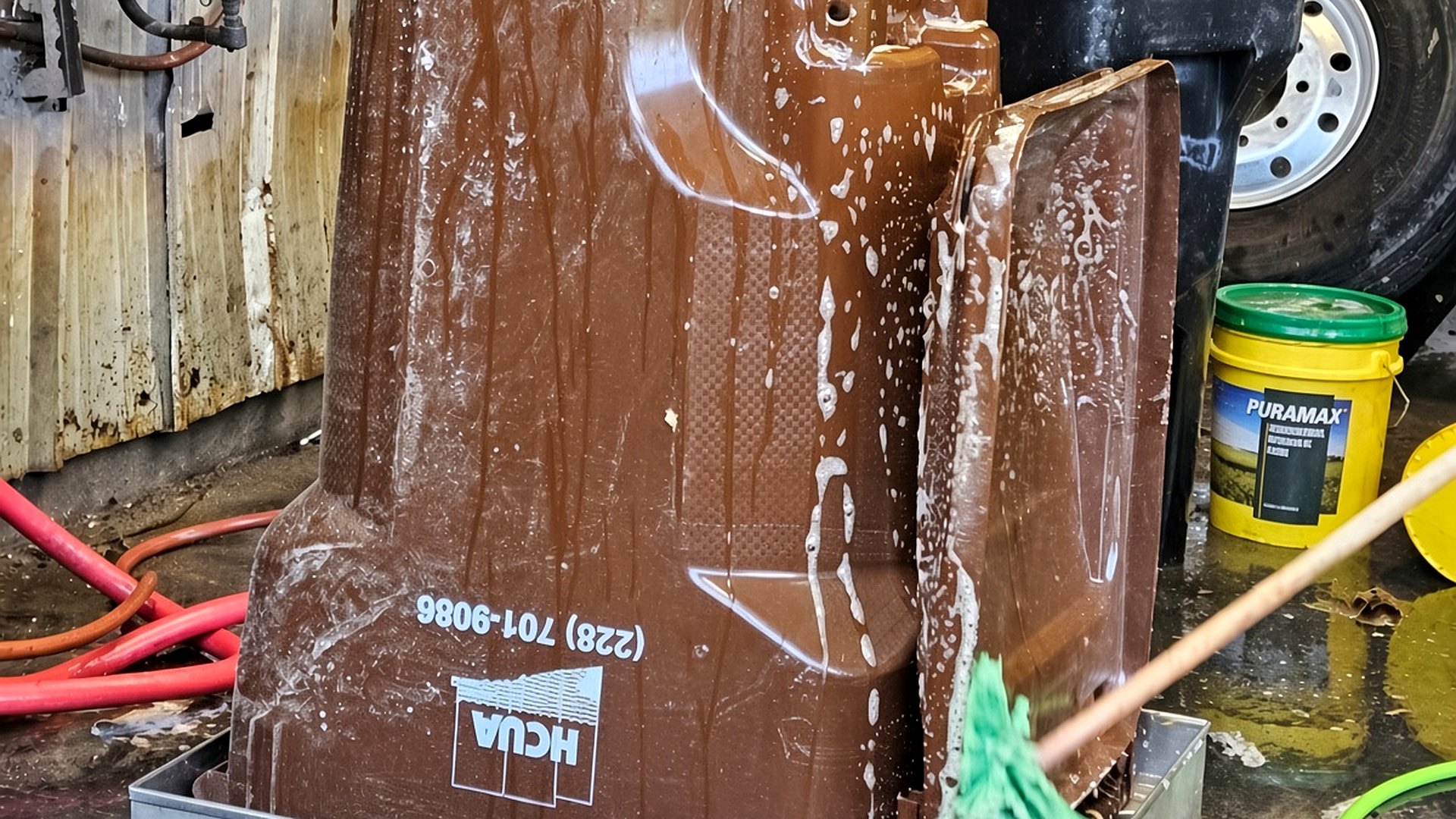

Food waste & organics
300 PSI on a 60° spinner reaches the base and lid seal a lance keeps missing.

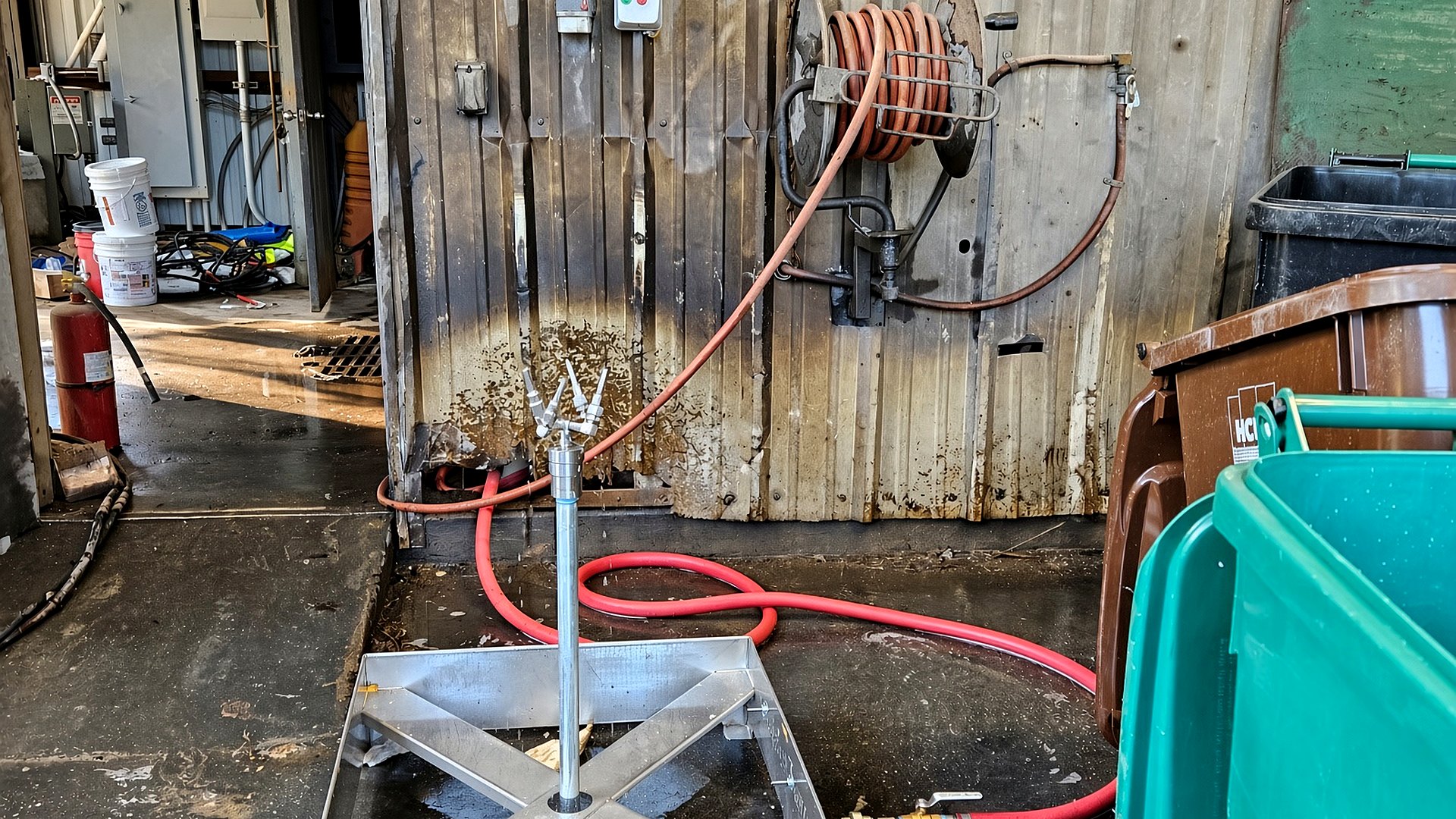

Healthcare & facilities docks
A dock-side interior wash for empty containers, not a clinical autoclave.
Campuses, airports, plants
Night-shift interior wash of litter and recycling bins that actually come home empty.
Order from the drawing.
Configure WBW-001, drop a company PO, 50% deposit. Or send the sheet pack to a sales engineer with your voltage and drain.
