01

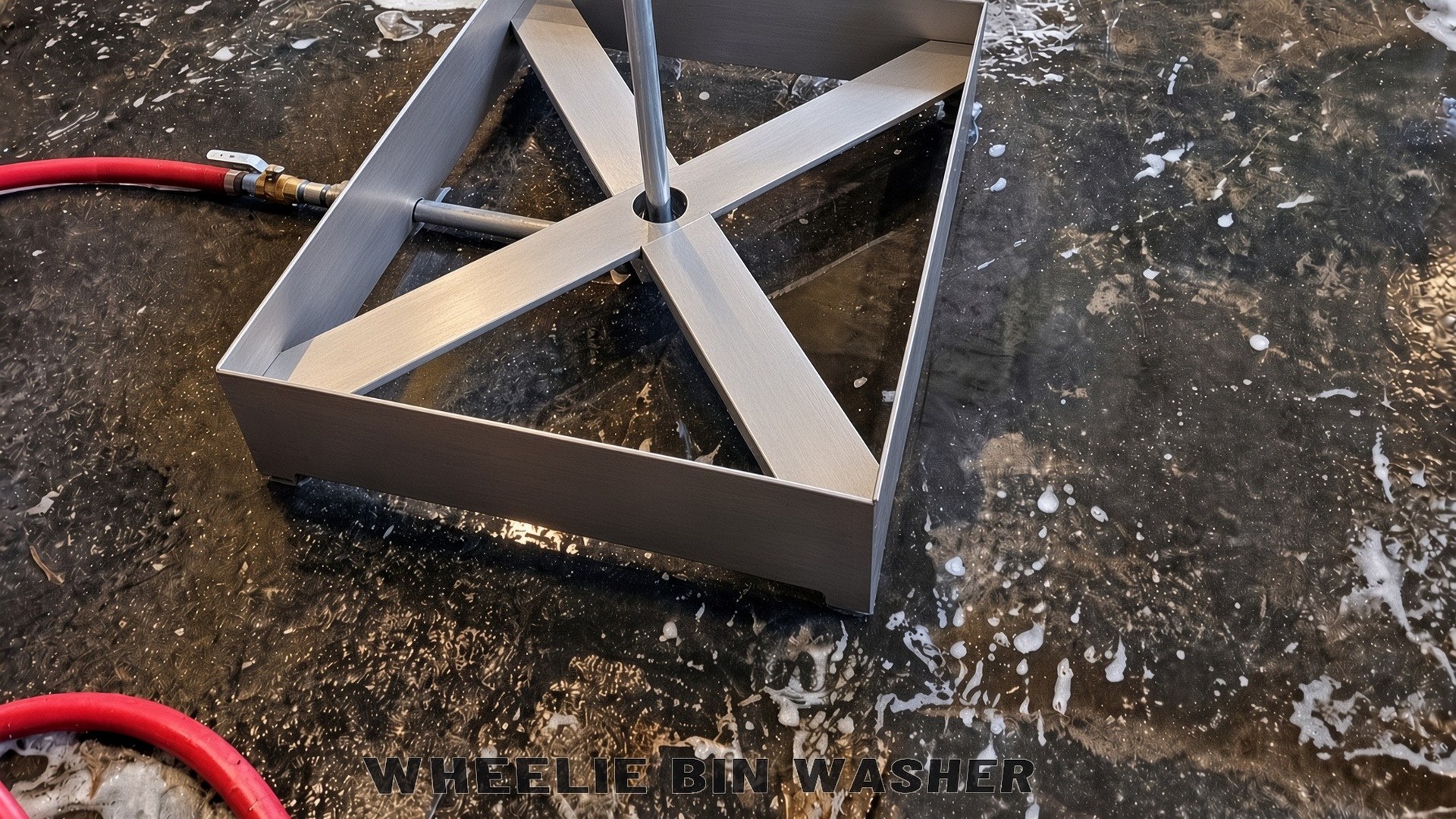

SS304 invert stand
40.75 × 36 × 8 in, 0.125 in plate, TIG all-around, X-bracing. Empty two-wheel bins seat over the riser. No hydraulics, no pit.
WBW-001
The wheelie bin washer on the drawing.
Invert-over-spinner. 40 GPM / 300 PSI. SS304. Complete station from $8,750 before freight. 50% deposit starts TIG.
02
60° spinner at 300 PSI
1 in FNPT rotary nozzle, 40 GPM, 24 in SCH 40 riser. Sits inside the inverted bin and hits the base a lance keeps missing.
03

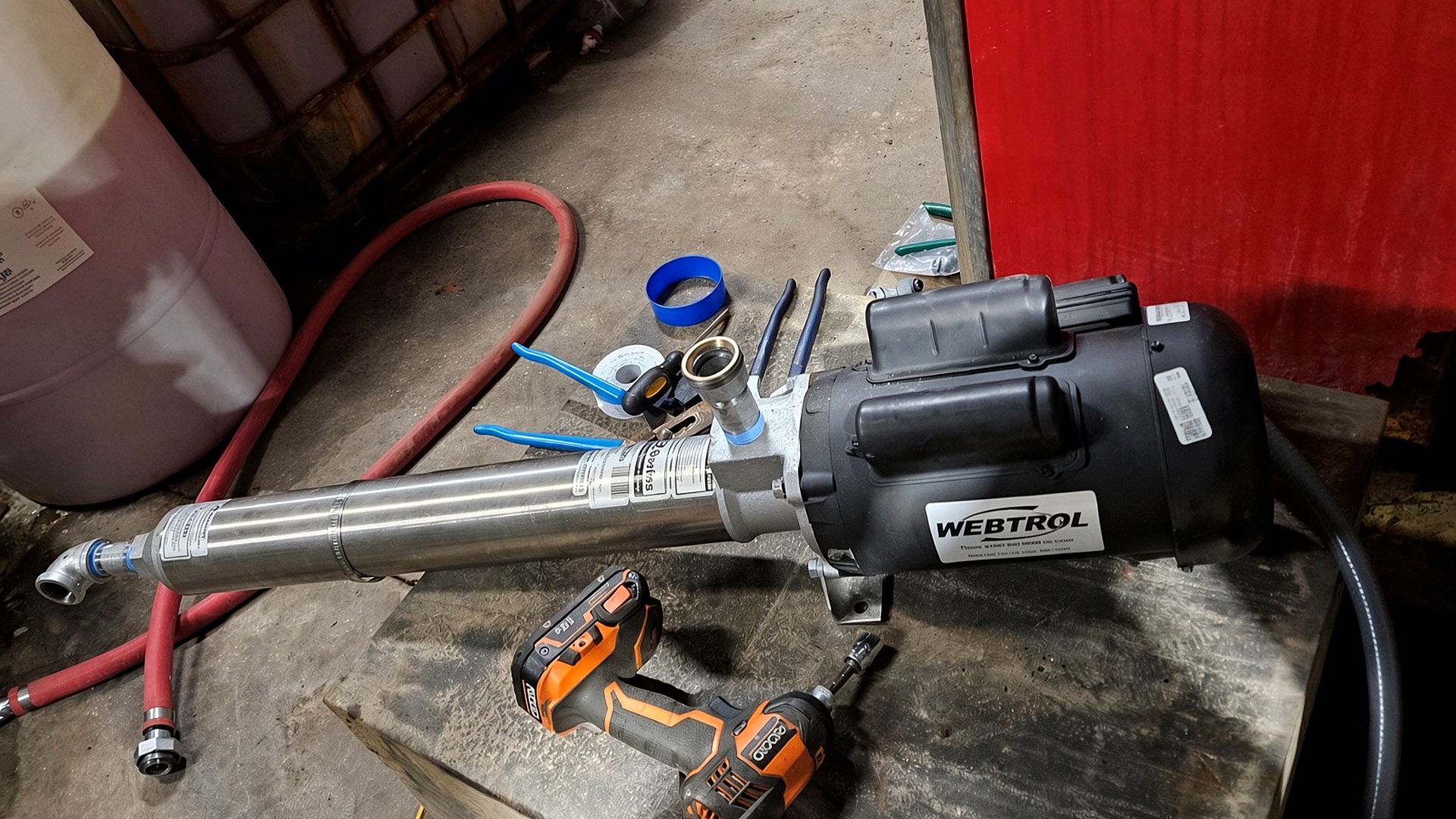

Webtrol booster + 55 gal
EZ G15B20T, 1.5 in suction reducing to 1 in, two 300 PSI hoses, Hudson float, FLS-HT-100, WEG starter. Sheet 1 is the complete station.
04
Built from the pack
Drawn PP, checked JB, 2026. Johnson Wash Systems, LLC. The published sheets are on this site. Production matches the drawing — not a brochure machine we invented.

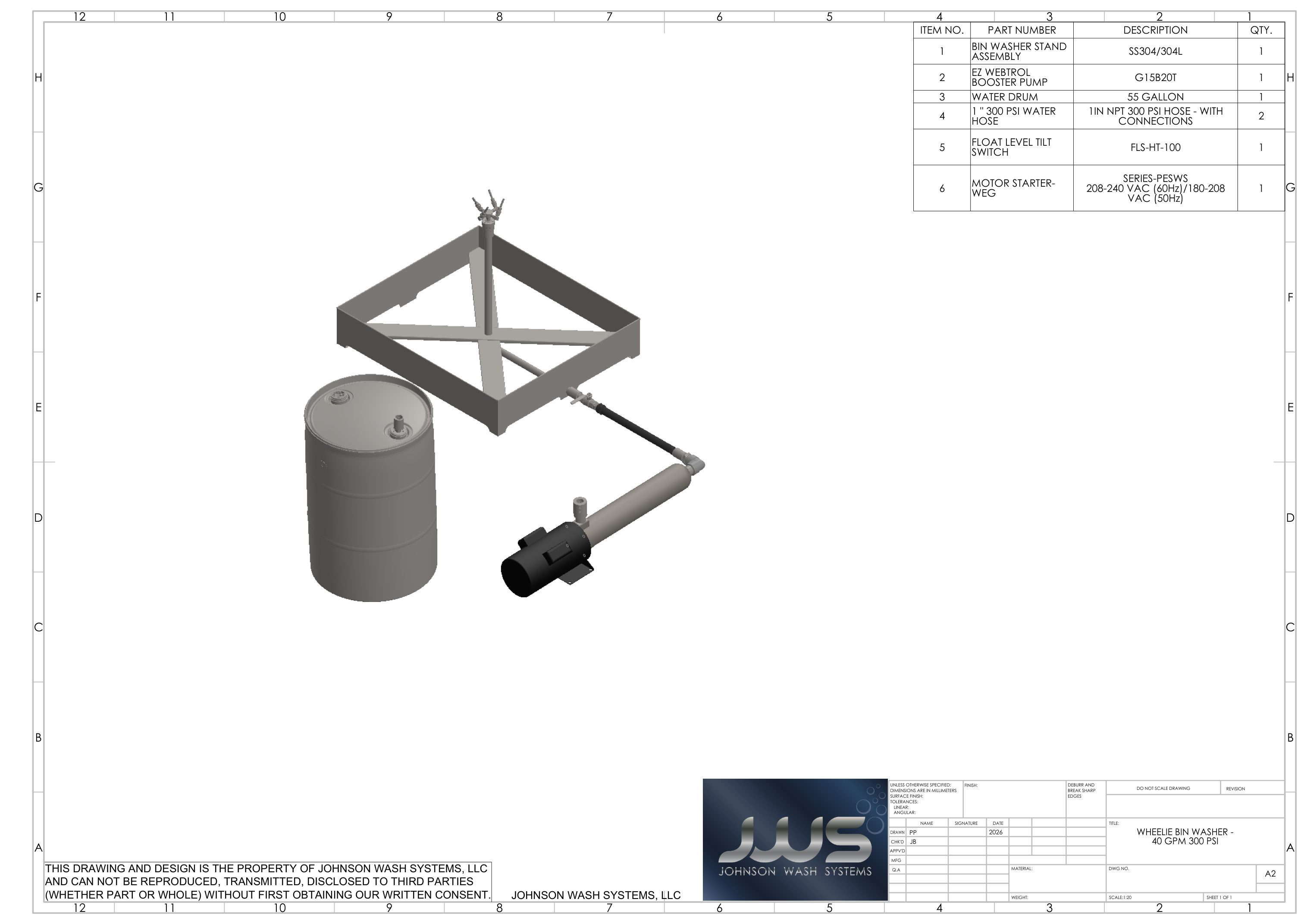

Sheet 1 BOM
What ships
| Item | Part | Description | Qty |
|---|---|---|---|
| 1 | Stand assembly | SS304/304L bin washer stand | 1 |
| 2 | G15B20T | EZ Webtrol booster pump | 1 |
| 3 | 55 gallon | Water drum | 1 |
| 4 | 1 in 300 PSI | NPT hose with connections | 2 |
| 5 | FLS-HT-100 | Float / tilt switch | 1 |
| 6 | WEG PESWS | Motor starter | 1 |
