Station, spinner, and the sheets.

Prototype film from 12–14 August 2026. The invert cycle is a 240 on the stand with the live yard spinner composited inside — HDPE is opaque, so that is the honest way to show jet impact. Open-air spinner and stills below. Drawing pack under that.

Invert cycle · start, 240 on the pan, cutaway, stop

Cutaway · live 60° spinner inside the inverted 240

Open spinner · portrait as shot

Open spinner · 16:9 crop

Cutaway of the live 60 degree spinner jets inside an inverted 240 litre bin on the WBW-001 stand
Cutaway · jets inside the 240
WBW-001 four-jet spinner running on the SS304 invert stand in a waste yard
Spinner live · 14 Aug 2026
SS304 invert stand and 60 degree spinner on a wet dock
Stand and 60° nozzle
Brown 240 litre bin inverted on the WBW-001 wash stand with soap
240 inverted on the stand
Operator in hi-vis brushing the exterior of an inverted bin on the wash stand
Interior spinner, exterior brush
WBW-001 installed in a wash bay with red hose reel and non-potable water
Dock install · non-potable
WBW-001 stand on a working dock among Waste Management and HCUA bins
On a working waste dock
WBW-001 stand on a wet dock with stacked 240 litre bins behind
Stand among 240s
Stacked empty green 240 litre waste bins in a depot
Empty 240s waiting
Overhead of the SS304 X-brace invert stand with WHEELIE BIN WASHER cut into the rim
WHEELIE BIN WASHER cut in

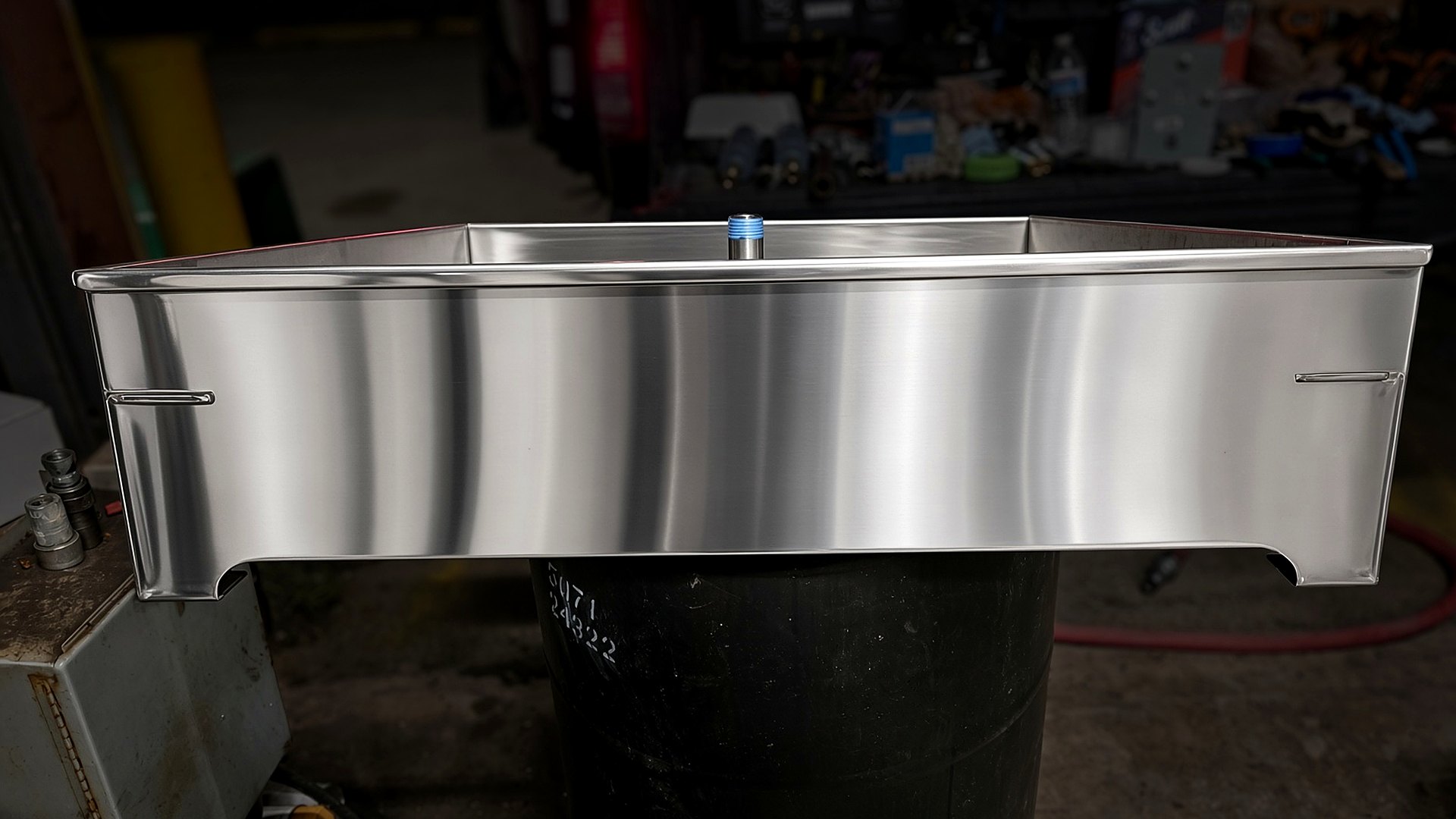

Side elevation of the 8 inch stainless invert pan
8 in pan, side elevation
Johnson Wash Systems 55 gallon drum with dual orange hoses
55 gal · JWS dual hose
EZ Webtrol G15B20T booster pump
Webtrol G15B20T
TIG weld at the spinner bore of the SS304 stand
TIG at the spinner bore

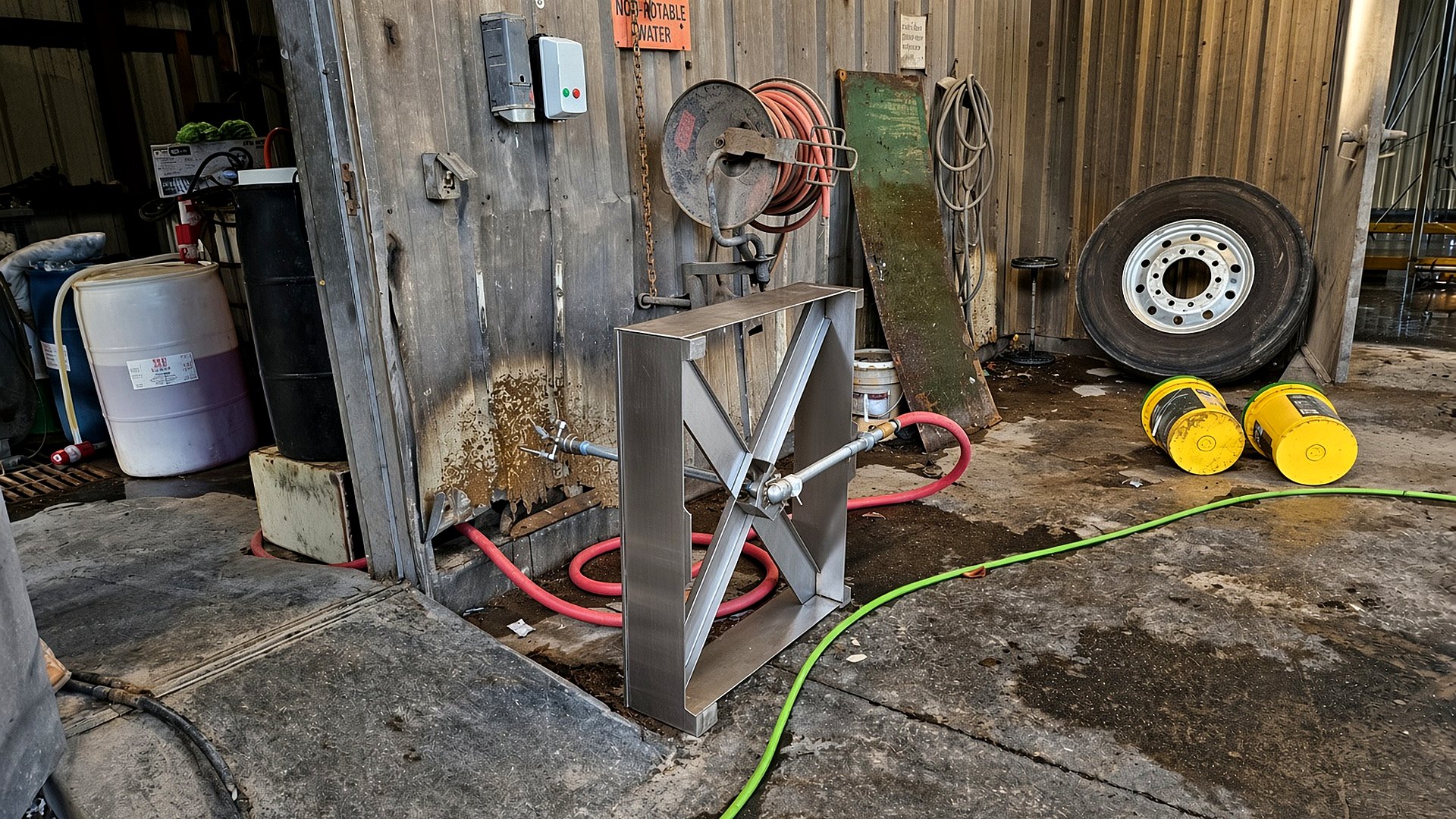

WBW-001 stand stored on its edge in the wash bay
Stands on edge when idle

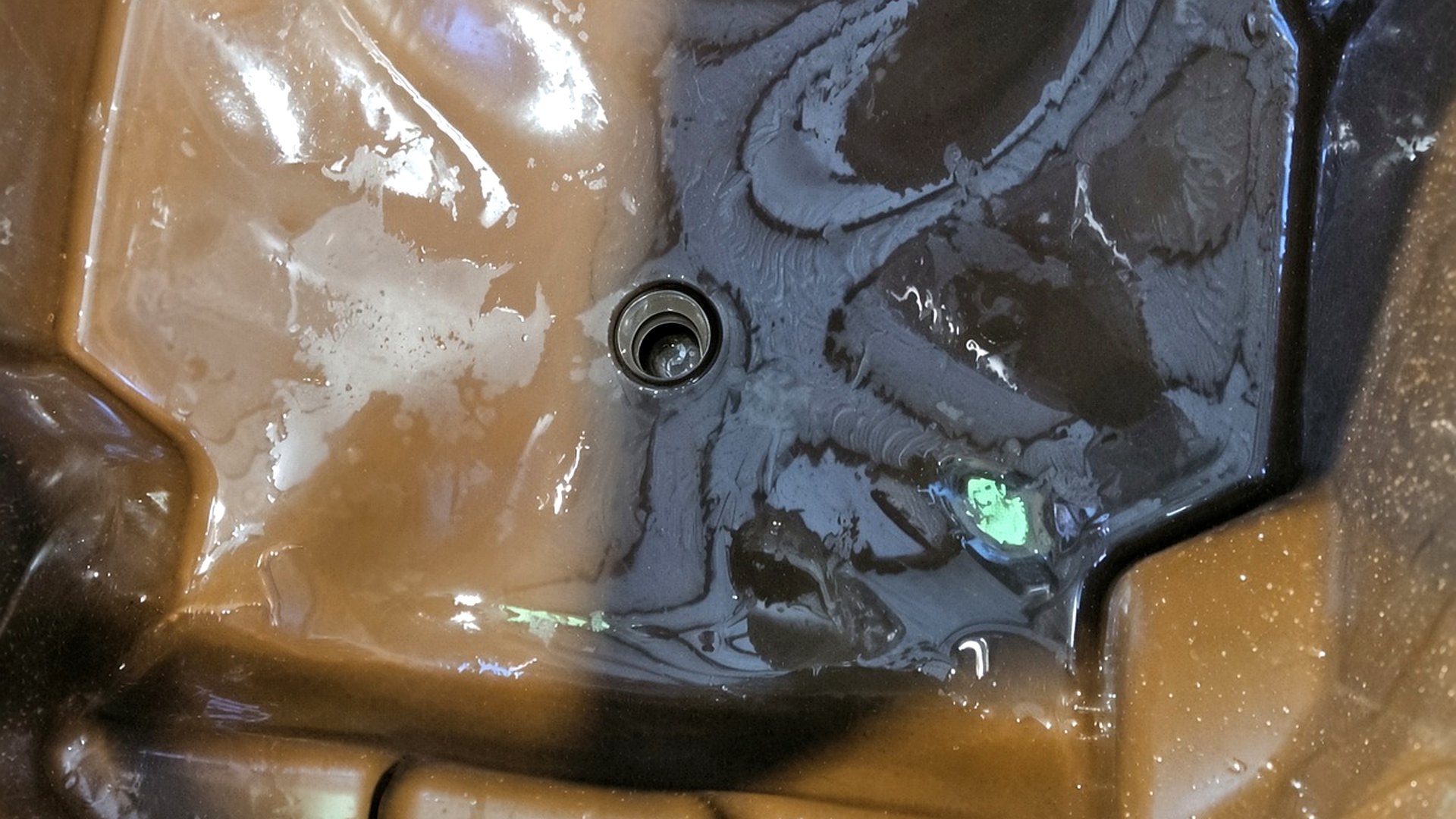

Wet interior of a 240 litre bin after the spinner wash
Interior after the shot

WBW-001 sheets

Assembly
Assembly · Stand, drum, pump, BOM
Stand GA
Stand GA · 40.75 × 36 × 8 in
Pipe spool
Pipe spool · 24 in riser, 60° spinner
Pump assembly
Pump assembly · G15B20T
Drum assembly
Drum assembly · 55 gal + Hudson valve
WBW-001 general arrangementSide-elevation schematic of the Johnson Wash Systems WBW-001 invert-over-spinner stand, 55-gallon drum, and Webtrol booster. Dimensions in inches.WBW-001 · GA · SIDE · INCHES · DO NOT SCALE1 60° SPINNER · 40 GPM 300 PSI2 STAND 40.75 × 36 × 8 in SS304 0.1253 G15B20T4 55 GAL
Schematic from WBW-001 (Johnson Wash Systems, LLC, 2026). Production dimensions are on the signed sheets in the gallery — do not scale this view.
